UDDI Spec TC

Technical Note

Using BPEL4WS in a UDDI registry

Document identifier:

uddi-spec-tc-tn-bpel

This Version:

http://www.oasis-open.org/committees/uddi-spec/doc/tn/uddi-spec-tc-tn-bpel-20040725.htm

Latest Version:

http://www.oasis-open.org/committees/uddi-spec/doc/tn/uddi-spec-tc-tn-bpel.htm

Authors:

Claus von Riegen, SAP (claus.von.riegen@sap.com)

Ivana Trickovic, SAP (ivana.trickovic@sap.com)

Editors:

Luc Clément, Systinet (luc.clement@systinet.com)

Andrew Hately, IBM (hately@us.ibm.com)

Contributors:

Tom Bellwood, IBM (bellwood@us.ibm.com)

Abstract:

BPEL4WS abstract processes describe the observable behavior of Web services. They complement abstract WSDL interfaces (port types and operations) and the UDDI model by defining dependencies between service operations in the context of a message exchange. This technical note describes the relationships between the three models and suggests how BPEL4WS abstract processes can be used in a UDDI Registry.

Status:

This document is updated periodically on no particular schedule. Send comments to the editor.

Committee members should send comments on this technical note to the uddi-spec@lists.oasis-open.org list. Others should subscribe to and send comments to the uddi-spec-comment@lists.oasis-open.org list. To subscribe, send an email message to uddi-spec-comment-request@lists.oasis-open.org with the word "subscribe" as the body of the message.

For information on whether any patents have been disclosed that may be essential to implementing this technical note, and any offers of patent licensing terms, please refer to the Intellectual Property Rights section of the UDDI Spec TC web page (http://www.oasis-open.org/committees/uddi-spec/).


Table of Contents

1      Introduction. 3

1.1 Problem statement 3

1.2 Reliance on WSDL Technical Note. 3

1.3 Terminology. 3

2      Technical Note Solution. 3

2.1 Definitions. 3

2.1.1 BPEL4WS Data Model 3

2.1.2 Mapping BPEL4WS to UDDI 3

3      tModel definitions. 3

3.1 BPEL Entity Type tModel 3

3.1.1 Design Goals. 3

3.1.2 Definition. 3

4      Example. 3

4.1 BPEL4WS process and WSDL portTypes. 3

4.2 UDDI V2 Registrations. 3

4.2.1 WSDL portTypes. 3

4.2.2 BPEL4WS process. 3

4.2.3 WSDL port 3

4.3 Sample V2 Queries. 3

4.3.1 Find tModel for process name. 3

4.3.2 Find processes for portTypes. 3

4.3.3 Find portTypes for process. 3

4.3.4 Find implementations for process. 3

4.4 UDDI V3 Registrations. 3

4.4.1 WSDL portTypes. 3

4.4.2 BPEL4WS process. 3

4.4.3 WSDL port 3

4.5 Sample V3 Queries. 3

4.5.1 Find tModel for process name. 3

4.5.2 Find processes for portTypes. 3

4.5.3 Find portTypes for process. 3

4.5.4 Find implementations for process. 3

5      References. 3

5.1 Normative. 3

Appendix A. Acknowledgments. 3

Appendix B. Revision History. 3

Appendix C. Notices. 3



1        Introduction

1.1 Problem statement

Publishing and discovering individual Web services is probably the area UDDI is most often used for. Also, the question on how to do that, especially by using WSDL [WSDL11], is already addressed by a number of Best Practice documents ([WSDLBP], [WSDLTN]).

WSDL describes the static interface of Web services, which includes definitions of individual operations. This may be adequate for Web services participating in stateless message exchanges. For Web services, which participate in longer conversations, it is necessary to describe the behavior of the services in terms of dependencies, either logical or temporal, among exchanged messages. This is the focus of several efforts including [BPEL4WS], now under standardization by the OASIS WSBPEL TC.

BPEL4WS abstract processes complement abstract WSDL interfaces describing behavioral aspects of Web services and providing data needed for integration with business partners. Abstract processes are used to specify the order in which business partners may invoke operations. Therefore it may be also of interest to exchange abstract processes between business partners. Software companies and standards bodies may use a UDDI registry to publish different types of services and business users may populate the registry with descriptions of services they support. BPEL4WS and WSDL may be used to describe service types, protocols that are supported and other deployment details.

While it is certainly possible to publish BPEL4WS process definitions in a UDDI registry, no guidelines are available as of today, which specify a common approach for doing that. Without such a common approach, the certainty that users find BPEL4WS process definitions or Web services that implement a given part of such a definition is limited.

This technical note provides guidelines for publishing BPEL4WS abstract processes in UDDI. The primary goals of mapping BPEL4WS artifacts to the UDDI model are to:

  1. Enable the automatic registration of BPEL4WS definitions in UDDI
  2. Enable optimized and flexible UDDI queries based on specific BPEL4WS artifacts and metadata
  3. Provide composability with the mapping described in the Using WSDL in a UDDI Registry, Version 2 [WSDLTN] Technical Note document

The following types of queries are enabled by this technical note:

·         Given the namespace and/or local name of a bpws:process, find the tModel that represents that process.

·         Given a tModel that represents a wsdl:portType (based on the usage of [WSDLTN]), find all tModels that represent bpws:processes based on that wsdl:portType.

·         Given a tModel representing a bpws:process, find all tModels representing wsdl:portTypes that are used by the bpws:process.

·         Given a tModel representing a bpws:process, find all bindingTemplates that implement a wsdl:portType that in turn is part of the bpws:process.

Publishing and discovering multi-party processes (including processes with just two participants) in a UDDI registry is out of scope of this Technical Note. BPEL4WS abstract processes could be used for describing the behavior of one participant in a multi-party process. A separate model based on BPEL4WS abstract processes is needed for describing the way how multiple Web services interact in the context of a scenario. We envisage that the proposal given in this document can be easily extended in order to store and retrieve multi-party processes to and from a UDDI registry.

1.2 Reliance on WSDL Technical Note

Since BPEL4WS abstract processes operate on WSDL artifacts, a common approach for mapping WSDL artifacts to the UDDI model is a prerequisite for this technical note in general. In particular, WSDL port types need to be registered and identified individually in UDDI. Thus, this technical note assumes the application of the Technical Note for Using WSDL in a UDDI Registry, Version 2.0 [WSDLTN].

1.3 Terminology

The key words must, must not, required, shall, shall not, should, should not, recommended, may, and optional in this document are to be interpreted as described in [RFC2119].

2        Technical Note Solution

2.1 Definitions

This section briefly explains a sub-set of BPEL4WS features that is of interest to this technical note and concepts of the mapping of BPEL4WS into UDDI.

2.1.1 BPEL4WS Data Model

The BPEL4WS model supports definition of the observable behavior of a Web service participating in a long-running conversation with other Web services. More particularly, the model defines abstract processes, which may be used for describing the observable behavior. These processes are in the scope of this Technical Note. BPEL4WS introduces features, such as process, action, correlation, role, partner link, etc, needed to describe the behavioral aspects of Web services. Figure 1 shows a sub-set of those features of interest in the context of this note and relationships between them. An action is one of BPEL4WS activities dealing with Web services interactions (invoking an operation of another Web service or waiting for a message to be received). A process defines sequencing of Web services interactions and other BPEL4WS primitive activities.

A Web service may play multiple roles within a conversation. Usually, for each partner the Web service may expose a different role. The abstract process declares roles that the Web service provider implements and roles that its partners must implement in order to make conversations possible in accordance to the described abstract process.

BPEL4WS partner link type defines binary relationship between roles. It specifies at most two roles that may communicate.

The BPEL4WS model is built on top of the abstract part of WSDL, which includes definitions of port types, messages and data types. Therefore, a BPEL4WS abstract process definition is reusable, that is, different services may implement the same BPEL4WS abstract process. The BPEL4WS process definition relies on WSDL operations. Each role defined in the partner link type specifies exactly one WSDL port type it implements.

A single BPEL4WS document may include multiple abstract process definitions. However, they are uniquely identified by the target namespace and its local name.



Figure 1: The BPEL model and its relationship with WSDL

2.1.2 Mapping BPEL4WS to UDDI

BPEL4WS abstract processes are published as separate UDDI tModels. They are named with the BPEL4WS process name. They are categorized as BPEL4WS process definitions, using a category system defined in this technical note. Their overviewDoc references an external BPEL4WS document that contains the process definition.

All WSDL portTypes that are used in the BPEL4WS process definition (via the referenced BPEL4WS partnerLinkTypes) are published as portType tModels according to [WSDLTN].

The process tModel references all such WSDL portType tModels, using the WSDL portType Reference tModel defined in [WSDLTN]. Note that it is a characteristic of the BPEL4WS process that it defines a conversation based on WSDL portTypes. Thus, the relationship between process tModel and portType tModel is to be published by the process tModel publisher, not by the portType tModel publisher, which may be a different person.

Implementations of those WSDL portTypes that are used in a BPEL4WS process are published as a UDDI bindingTemplate and reference, additionally to the corresponding WSDL portType tModel, the process tModel that represents the BPEL4WS process. Note that it is a characteristic of a deployed Web service that it behaves as described in a particular BPEL4WS process. Thus, the relationship between bindingTemplate and process tModel is to be published by the bindingTemplate publisher, not by the process tModel publisher, which may be a different person.

An overview of this mapping approach is illustrated by Figure 2.

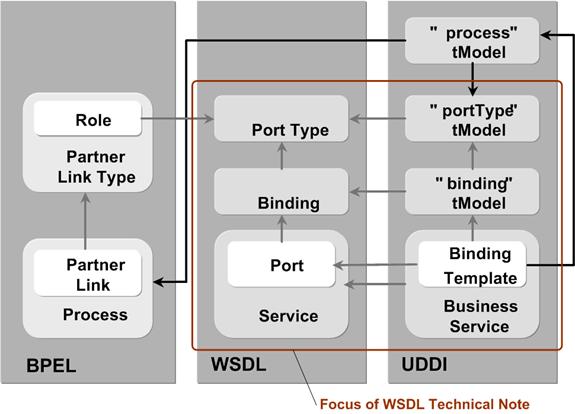

Figure 2: Mapping BPEL to UDDI

3         tModel definitions

3.1 BPEL Entity Type tModel

3.1.1 Design Goals

This mapping uses a number of UDDI entities to represent the various entities within a BPEL4WS document. A mechanism is required to indicate what type of BPEL4WS entity is being described by each UDDI entity. The BPEL Entity Type tModel provides a typing system for this purpose. This category system is used to indicate that a UDDI entity represents a particular type of BPEL4WS entity.

3.1.2 Definition

Name:                          uddi.org:bpel:types

Description:                 BPEL Type Category System

V3 format key:              uddi:uddi.org:bpel:types

V1,V2 format key:         uuid:e8d75f6c-3f24-3b8d-97fd-f168e424056f

Categorization:             categorization

Checked:                      yes

3.1.2.1 V2 tModel Structure

<tModel tModelKey="uuid:e8d75f6c-3f24-3b8d-97fd-f168e424056f">

    <name>uddi.org:bpel:types</name>

    <overviewDoc>

        <overviewURL>

               TBD, should point to this section when the document is published as a Technical Note by the UDDI TC

        </overviewURL>

    </overviewDoc>

    <categoryBag>

        <keyedReference

            keyName="uddi-org:categorization:types"

            keyValue="categorization"

            tModelKey="uuid:c1acf26d-9672-4404-9d70-39b756e62ab4"/>

        <keyedReference

            keyName="uddi-org:categorization:types"

            keyValue="unchecked"

            tModelKey="uuid:c1acf26d-9672-4404-9d70-39b756e62ab4"/>

    </categoryBag>

</tModel>

3.1.2.2 Valid Values

There is only one valid value that can be used with this category system:



keyValue

Description

UDDI Entity

process

Represents a UDDI entity categorized as a bpel:process

tModel

3.1.2.3 Example of Use

A V2 tModel representing a process would have a categoryBag representing its type:

<categoryBag>

          <keyedReference

                tModelKey="uuid:e8d75f6c-3f24-3b8d-97fd-f168e424056f"

                keyName="BPEL Entity type"

                keyValue="process"/>

</categoryBag>

4        Example

This section includes tModels representing a BPEL4WS abstract process, accompanying WSDL descriptions and UDDI registrations. A Travel Agent example is used for illustration. The example gives the basic behavior exposed by a Travel Agent service in a Ticket Reservation System. Figure 3 shows the overall process: the Travel Agent interacts with a Customer (a traveler) according to a very simplified choreography: a customer can order a trip with the travel agent, and later may either cancel or confirm already reserved trip.

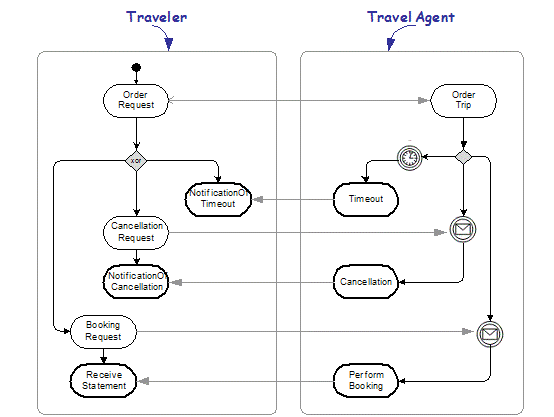

Figure 3:  The Ticket Reservation scenario

4.1 BPEL4WS process and WSDL portTypes

The following code example shows the abstract WSDL interfaces of the Travel Agent service, the abstract WSDL interface of the Customer service, and the relationship between the two services (or corresponding roles).

<?xml version="1.0" ?>

<definitions name="TravelAgent"

targetNamespace="http://example.com/travelagent/wsdl"

xmlns="http://schemas.xmlsoap.org/wsdl/"

xmlns:bpws="http://schemas.xmlsoap.org/ws/2003/03/business-process/"

xmlns:plnk="http://schemas.xmlsoap.org/ws/2003/05/partner-link/">



<!—- data type definitions and message definitions are omitted-->



<!-- port type definitions -->



<portType name="InterfaceOfTravelAgent">

   <operation name="OrderTrip">

      <input message="orderRequest"/>

      <output message="orderAcknowledgement"/>

   </operation>



   <operation name="CancelReservation">

      <input message="cancellationRequest"/>

   </operation>



   <operation name="PerformBooking">

      <input message="bookingRequest"/>

      <output message="bookingConfirmation"/>

   </operation>

</portType>



<portType name="InterfaceOfCustomer">

   <operation name="NotificationOfCancellation">

      <input message="cancellationResponse"/>

   </operation>



   <operation name="NotificationOfTimeout">

      <input message="timeoutMsg"/>

   </operation>



   <operation name="ReceiveStatement">

      <input message="statement"/>

   </operation>

</portType>



<!—partner link type definitions -->



<plnk:partnerLinkType name="TravelAgentService">

   <plnk:role name="TravelAgent">

      <plnk:portType name="InterfaceOfTravelAgent"/>

   </plnk:role>

   <plnk:role name="Customer">

      <plnk:portTYpe name="InterfaceOfCustomer"/>

   </plnk:role>

</plnk:partnerLinkType>



<!—definition of properties -->



<bpws:property name="reservationID" type="xsd:string"/>



<!—- property aliases are omitted-->

</definitions>



The following code example shows the BPEL4WS abstract process of the Travel Agent service.

<process name="ReservationAndBookingTickets"

   targetNamespace="http://example.com/travelagent"

   xmlns="http://schemas.xmlsoap.org/ws/2003/03/business-process/"

   xmlns:taw="http://example.com/travelagent/wsdl"

   abstractProcess="yes">



   <partnerLinks>

      <partnerLink name="TravelAgency"

         partnerLinkType="taw:TravelAgencyService"

         partnerRole="Customer"

         myRole="TravelAgent"/>

   </partnerLinks>



   <correlationSets>

      <correlationSet name="reservationCorrelation"

            properties=”taw:reservationID”/>

   </correlationSets>



   <sequence>

      <receive partnerLink="TravelAgency"

         portType="taw:InterfaceOfTravelAgent"

         operation="OrderTrip"

         createInstance="yes">

         <correlations>

            <correlation set="reservationCorrelation"

                  initiate="yes"/>

         </correlations>

      </receive>

      <pick>

         <onAlarm duration="P0Y0M1D">

            <invoke partnerLink="TravelAgency"

                  portType="taw:InterfaceOfCustomer"

                  operation="NotificationOfTimeout">

              <correlations>

                 <correlation set="reservationCorrelation"

                          pattern="out"/>

              </correlations>

            </invoke>

         </onAlarm>

         <onMessage partnerLink="TravelAgency"

                  portType="taw:InterfaceOfTravelAgent"

                  operation="CancelReservation">

            <correlations>

               <correlation set="reservationCorrelation"/>

            </correlations>

            <invoke partnerLink="TravelAgency"

                  portType="taw:InterfaceOfCustomer"

                  operation="NotificationOfCancellation">

               <correlations>

                 <correlation set="reservationCorrelation"

                    pattern="out"/>

               </correlations>

            </invoke>

         </onMessage>

         <onMessage partnerLink="TravelAgency"

                  portType="taw:InterfaceOfTravelAgent"

                  operation="PerformBooking">

             <correlations>

                <correlation set="reservationCorrelation"/>

             </correlations>

             <invoke partnerLink="TravelAgency"

                    portType="taw:InterfaceOfCustomer"

                    operation="ReceiveStatement">

                 <correlations>

                     <correlation set="reservationCorrelation"

                          pattern="out"/>

                 </correlations>

            </invoke>

         </onMessage>

      </pick>

   </sequence>

</process>



The Travel Agent service provider may publish this BPEL4WS abstract process and accompanying abstract WSDL interface in a UDDI registry. In this way any customer may use this description in order to understand requirements the Travel Agent service exposes in the context of this scenario.




4.2 UDDI V2 Registrations

The following code examples show the UDDI registrations for the abstract WSDL interfaces and the BPEL4WS abstract that were used in the previous section.

4.2.1 WSDL portTypes

According to the Technical Note for using WSDL in UDDI [WSDLTN], the WSDL portTypes that are used in the BPEL4WS process definitions are published as separate tModels as follows:

<tModel tModelKey="uuid:a1..." >

    <name>InterfaceOfTravelAgent</name>

    <overviewDoc>

         <overviewURL>http://location/travelagent.wsdl<overviewURL>

    <overviewDoc>

    <categoryBag>

        <keyedReference

            tModelKey="uuid:d01987d1-ab2e-3013-9be2-2a66eb99d824"

            keyName="uddi-org:xml:namespace"

            keyValue="http://example.com/travelagent/wsdl" />

        <keyedReference

            tModelKey="uuid:6e090afa-33e5-36eb-81b7-1ca18373f457"

            keyName="uddi-org:wsdl:types"

            keyValue="portType" />

    </categoryBag>

</tModel>



<tModel tModelKey="uuid:a2..." >

    <name>InterfaceOfCustomer</name>

    <overviewDoc>

         <overviewURL>http://location/customer.wsdl<overviewURL>

    <overviewDoc>

    <categoryBag>

        <keyedReference

            tModelKey="uuid:d01987d1-ab2e-3013-9be2-2a66eb99d824"

            keyName="uddi-org:xml:namespace"

            keyValue="http://example.com/travelagent/wsdl" />

        <keyedReference

            tModelKey="uuid:6e090afa-33e5-36eb-81b7-1ca18373f457"

            keyName="uddi-org:wsdl:types"

            keyValue="portType" />

    </categoryBag>

</tModel>



4.2.2 BPEL4WS process

<tModel tModelKey="uuid:b1..." >

    <name>ReservationAndBookingTickets</name>

    <overviewDoc>

         <overviewURL>http://location/reservation.bpel<overviewURL>

    <overviewDoc>

    <categoryBag>

        <keyedReference

            tModelKey="uuid:d01987d1-ab2e-3013-9be2-2a66eb99d824"

            keyName="uddi-org:xml:namespace"

            keyValue="http://example.com/travelagent" />

        <keyedReference

            tModelKey="uuid:e8d75f6c-3f24-3b8d-97fd-f168e424056f"

            keyName="uddi-org:bpel:types”

            keyValue="process" />

        <keyedReference

            tModelKey="uuid:082b0851-25d8-303c-b332-f24a6d53e38e"

            keyName="uddi-org:wsdl:portTypeReference"

            keyValue="uuid:a1..." />

        <keyedReference

            tModelKey="uuid:082b0851-25d8-303c-b332-f24a6d53e38e"

            keyName="uddi-org:wsdl:portTypeReference"

            keyValue="uuid:a2..." />

    </categoryBag>

</tModel>

4.2.3 WSDL port

<businessService

  serviceKey="d1..."

  businessKey="e1...">

  …

  <bindingTemplates>

    <bindingTemplate

        bindingKey="c1..."

        serviceKey="d1...">

        <accessPoint URLType="http">

          http://location/sample

        </accessPoint>

        <tModelInstanceDetails>

            <tModelInstanceInfo

                tModelKey="...">

                <description xml:lang="en">

                    The wsdl:binding that this wsdl:port implements.
                    The instanceParms specifies the port local name.

                </description>

                <instanceDetails>

                    <instanceParms>TravelAgentPort</instanceParms>

                </instanceDetails>

            </tModelInstanceInfo>

            <tModelInstanceInfo

                tModelKey="uuid:a1...">

                <description xml:lang="en">

                    The wsdl:portType that this wsdl:port implements.

                </description>

            </tModelInstanceInfo>

            <tModelInstanceInfo

                tModelKey="uuid:b1...">

                <description xml:lang="en">

                    The bpel:process this wsdl:port supports.

                </description>

            </tModelInstanceInfo>

        </tModelInstanceDetails>

    </bindingTemplate>

  </bindingTemplates>

</businessService>






4.3 Sample V2 Queries

4.3.1 Find tModel for process name

Find the process tModel for ReservationAndBookingTickets in the namespace http://example.com/travelagent.

<find_tModel generic="2.0" xmlns="urn:uddi-org:api_v2">

    <name>ReservationAndBookingTickets</name>

    <categoryBag>

        <keyedReference

          tModelKey="uuid:e8d75f6c-3f24-3b8d-97fd-f168e424056f"

          keyValue="process"/>

        <keyedReference

          tModelKey="uuid:d01987d1-ab2e-3013-9be2-2a66eb99d824"

          keyValue="http://example.com/travelagent"/>

    </categoryBag>

</find_tModel>

This should return the tModelKey “uuid:b1…”.

4.3.2 Find processes for portTypes

Find all processes that use the InterfaceOfTravelAgent portType.

<find_tModel generic="2.0" xmlns="urn:uddi-org:api_v2">

    <categoryBag>

        <keyedReference

          tModelKey="uuid:e8d75f6c-3f24-3b8d-97fd-f168e424056f"

          keyValue="process"/>

        <keyedReference

          tModelKey="uuid:082b0851-25d8-303c-b332-f24a6d53e38e"

          keyValue="a1..."/>

    </categoryBag>

</find_tModel>

This should return the tModelKey “uuid:b1…”.

4.3.3 Find portTypes for process

Find all portTypes used in the ReservationAndBookingTickets process.

<get_tModelDetail generic="2.0" xmlns="urn:uddi-org:api_v2">

    <tModelKey>uuid:b1...</tModelKey>

</get_tModelDetail>



This should return the tModel registration for the process tModel with the key “uuid:b1…”. The tModelKeys for the portTypes used in the process can be obtained from the process tModel’s categoryBag. Once retrieved, the second call is made to get the tModel registrations for the portTypes with the keys “uuid:a1…” (InterfaceOfTravelAgent) and “uuid:a2…” (InterfaceOfCustomer).

<get_tModelDetail generic="2.0" xmlns="urn:uddi-org:api_v2">

    <tModelKey>uuid:a1...</tModelKey>

    <tModelKey>uuid:a2...</tModelKey>

</get_tModelDetail>



4.3.4 Find implementations for process

Find all implementations of ReservationAndBookingTickets process.

Because the serviceKey attribute is required in the find_binding call in the UDDI V2 API, it is not possible to find all implementations of a process with a single call.  A find_service call must be made first to get the keys of all services that contain a bindingTemplate that references the process, then either the details of each such service must be retrieved with a get_serviceDetail call and the appropriate bindingTemplate looked for among the bindingTemplates of the service, or a find_binding call must be made for each service, with the serviceKey attribute set accordingly.  The following example shows the use of a find_binding call.

This first call gets the list of services that have a bindingTemplate that references the process.

<find_service generic="2.0" xmlns="urn:uddi-org:api_v2">

    <tModelBag>

        <tModelKey>uuid:b1...</tModelKey>

    </tModelBag>

</find_service>



This should return the serviceKey “d1...”.

Now the second call is made to find the appropriate bindings of this particular service.

<find_binding serviceKey="d1..." generic="2.0" xmlns="urn:uddi-org:api_v2">

    <tModelBag>

        <tModelKey>uuid:b1...</tModelKey>

    </tModelBag>

</find_binding>



This should return the bindingKey “c1…”.

4.4 UDDI V3 Registrations

Illustrating all this using UDDI V3 examples that use uri’s for keys is probably clearer. The following sections illustrate our example’s registrations and searching using UDDI V3..

4.4.1 WSDL portTypes

Under V3, the WSDL portType tModels shown in the above section on WSDL portTypes would be published using domain keys which are based on ownership of the TravelAgent.com domain keyGenerator, which this company would have previously published in the UDDI registry.  This keyGenerator acts as a “license” for publishing UDDI artifacts whose keys are derived from that domain key:

<tModel tModelKey="uddi:TravelAgent.com:TravelAgentInterface_portType">

    <name>InterfaceOfTravelAgent</name>

    <overviewDoc>

         <overviewURL>http://location/travelagent.wsdl<overviewURL>

    <overviewDoc>

    <categoryBag>

        <keyedReference

            tModelKey="uddi:uddi.org:xml:namespace"

            keyName="uddi-org:xml:namespace"

            keyValue="http://example.com/travelagent/wsdl" />

        <keyedReference

            tModelKey="uddi:uddi.org:wsdl:types"

            keyName="uddi-org:wsdl:types"

            keyValue="portType" />

    </categoryBag>

</tModel>



<tModel tModelKey="uddi:TravelAgent.com:CustomerInterface_portType">

    <name>InterfaceOfCustomer</name>

    <overviewDoc>

         <overviewURL>http://location/customer.wsdl<overviewURL>

    <overviewDoc>

    <categoryBag>

        <keyedReference

            tModelKey="uddi:uddi.org:xml:namespace"

            keyName="uddi-org:xml:namespace"

            keyValue="http://example.com/travelagent/wsdl" />

        <keyedReference

            tModelKey="uddi:uddi.org:wsdl:types"

            keyName="uddi-org:wsdl:types"

            keyValue="portType" />

    </categoryBag>

</tModel>

4.4.2 BPEL4WS process

<tModel tModelKey="uddi:TravelAgent.com:ReservationAndBookingTicketsProcess">

    <name>ReservationAndBookingTickets</name>

    <overviewDoc>

         <overviewURL>http://location/reservation.bpel<overviewURL>

    <overviewDoc>

    <categoryBag>

        <keyedReference

            tModelKey="uddi:uddi.org:xml:namespace"

            keyName="uddi-org:xml:namespace"

            keyValue="http://example.com/travelagent" />

        <keyedReference

            tModelKey="uddi:uddi.org:bpel:types"

            keyName="uddi-org:bpel:types”

            keyValue="process" />

        <keyedReference

            tModelKey="uddi:uddi.org:wsdl:porttypereference"

            keyName="uddi-org:wsdl:portTypeReference"

            keyValue="uddi:TravelAgent.com:TravelAgentInterface_portType" />

        <keyedReference

            tModelKey="uddi:uddi.org:wsdl:porttypereference"

            keyName="uddi-org:wsdl:portTypeReference"

            keyValue="UDDI:TravelAgent.com:CustomerInterface" />

    </categoryBag>

</tModel>

4.4.3 WSDL port

<businessService

  serviceKey="uddi:TravelAgent.com:service1"

  businessKey="uddi:TravelAgent.com:StoreFront">

  …

  <bindingTemplates>

    <bindingTemplate

        bindingKey="uddi:TravelAgent.com:TravelAgentPort"

        serviceKey="uddi:TravelAgent.com:service1">

        <accessPoint useType="endPoint">

          http://location/sample

        </accessPoint>

        <tModelInstanceDetails>

            <tModelInstanceInfo

                tModelKey="uddi:...">

                <description xml:lang="en">

                    The wsdl:binding that this wsdl:port implements.
                    The instanceParms specifies the port local name.

                </description>

                <instanceDetails>

                    <instanceParms>TravelAgentPort</instanceParms>

                </instanceDetails>

            </tModelInstanceInfo>

            <tModelInstanceInfo

                tModelKey="uddi:TravelAgent.com:TravelAgentInterface_portType">

                <description xml:lang="en">

                    The wsdl:portType that this wsdl:port implements.

                </description>

            </tModelInstanceInfo>

            <tModelInstanceInfo

                tModelKey=

                     "uddi:TravelAgent.com:ReservationAndBookingTicketsProcess">

                <description xml:lang="en">

                    The bpel:process this wsdl:port supports.

                </description>

            </tModelInstanceInfo>

        </tModelInstanceDetails>

    </bindingTemplate>

  </bindingTemplates>

</businessService>

4.5 Sample V3 Queries

4.5.1 Find tModel for process name

Find the process tModel for the ReservationAndBookingTickets business process in the namespace http://example.com/travelagent.

<find_tModel xmlns="urn:uddi-org:api_v3">

    <name>ReservationAndBookingTickets</name>

    <categoryBag>

        <keyedReference

          tModelKey="uddi:uddi.org:bpel:types"

          keyValue="process"/>

        <keyedReference

          tModelKey="uddi:uddi.org:xml:namespace"

          keyValue="http://example.com/travelagent"/>

    </categoryBag>

</find_tModel>

This should return the tModelKey “uddi:TravelAgent.com:ReservationAndBookingTicketsProcess”.

4.5.2 Find processes for portTypes

Find all processes that use the InterfaceOfTravelAgent portType.

<find_tModel xmlns="urn:uddi-org:api_v3">

    <categoryBag>

        <keyedReference

          tModelKey="uddi:uddi.org:bpel:types"

          keyValue="process"/>

        <keyedReference

          tModelKey="uddi:uddi.org:wsdl:porttypereference"

          keyValue="uddi:TravelAgent.com:TravelAgentInterface_portType"/>

    </categoryBag>

</find_tModel>

This should return the tModelKey “uddi:TravelAgent.com:ReservationAndBookingTicketsProcess”.




4.5.3 Find portTypes for process

Find all portTypes used in the ReservationAndBookingTickets process.

<get_tModelDetail xmlns="urn:uddi-org:api_v3">

    <tModelKey>uddi:TravelAgent.com:ReservationAndBookingTicketsProcess                       </tModelKey>

</get_tModelDetail>

This should return the tModel registration for the process tModel with the key “uddi:TravelAgent.com:ReservationAndBookingTicketsProcess”. The tModelKeys for the portTypes used in the process can be obtained from the process tModel’s categoryBag. Once retrieved, the second call is made to get the tModel registrations for the portTypes with the keys “uddi:TravelAgent.com:TravelAgentInterface_portType” (InterfaceOfTravelAgent) and “uddi:TravelAgent.com:CustomerInterface_portType” (InterfaceOfCustomer).

<get_tModelDetail xmlns="urn:uddi-org:api_v3">    <tModelKey>uddi:TravelAgent.com:TravelAgentInterface_portType</tModelKey>

    <tModelKey>uddi:TravelAgent.com:CustomerInterface_portType</tModelKey>

</get_tModelDetail>

4.5.4 Find implementations for process

Find all implementations of ReservationAndBookingTickets process.

<find_binding xmlns="urn:uddi-org:api_v3">

    <tModelBag>

        <tModelKey>uddi:TravelAgent.com:ReservationAndBookingTicketsProcess                </tModelKey>

    </tModelBag>

</find_binding>

This should return the bindingKey “uddi:TravelAgent.com:TravelAgentPort”.



5        References

5.1 Normative

[BPEL4WS]            T. Andrews, F. Curbera, H. Dholakia, Y. Goland, J. Klein, F. Leymann, K. Liu, D. Roller, D. Smith, S. Thatte, I. Trickovic, S. Weerawarana, Business Process Execution Language for Web Services Version 1.1, http://ifr.sap.com/bpel4ws, May 2003.

[RFC2119]               S. Bradner, Key words for use in RFCs to Indicate Requirement Levels, http://www.ietf.org/rfc/rfc2119.txt, IETF RFC 2119, March 1997.

[WSDL11]               E. Christensen, F. Curbera, G. Meredith, S. Weerawarana, Web Services Description Language (WSDL) 1.1, http://www.w3.org/TR/2001/NOTE-wsdl-20010315, W3C Note, March 2001.

[WSDLBP]              J. Colgrave, K. Januszewski, Using WSDL in a UDDI Registry, Version 1.08, http://www.oasis-open.org/committees/uddi-spec/doc/bp/uddi-spec-tc-bp-using-wsdl-v108-20021110.htm, OASIS UDDI TC Best Practice, November 2002.

[WSDLTN]              J. Colgrave, K. Januszewski, Using WSDL in a UDDI Registry, Version 2.0, http://www.oasis-open.org/committees/uddi-spec/doc/tn/uddi-spec-tc-tn-wsdl-v2.htm, OASIS UDDI TC Technical Note, June 2003.



Appendix A. Acknowledgments

The following individuals provided input of this technical note:

Jan Pridal, Systinet

Svatopluk Dedic, Systinet

Ales Lipovy, Systinet

Appendix B. Revision History

Rev

Date

By Whom

What

0.8

Jan 29, 2004

C. v. Riegen, I. Trickovic

First complete draft

0.9

March 22, 2004

T. Bellwood

Corrected a few typos; Added sections on V3 registrations and queries

1.0

April 15, 2004

I. Trickovic

Corrected figure #2 (included in section 2.1.2); Corrected the BPEL4WS abstract process (section 4.1); Addressed a few additional wording issues

1.0.1

July 19, 2004

C. v. Riegen, I. Trickovic

Addressed issues raised during UDDI TC FTF meeting June 28-30, 2004



Appendix C. Notices

OASIS takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Information on OASIS's procedures with respect to rights in OASIS specifications can be found at the OASIS website. Copies of claims of rights made available for publication and any assurances of licenses to be made available, or the result of an attempt made to obtain a general license or permission for the use of such proprietary rights by implementors or users of this specification, can be obtained from the OASIS Executive Director.

OASIS invites any interested party to bring to its attention any copyrights, patents or patent applications, or other proprietary rights which may cover technology that may be required to implement this specification. Please address the information to the OASIS Executive Director.

Copyright © OASIS Open 2004. All Rights Reserved.

This document and translations of it may be copied and furnished to others, and derivative works that comment on or otherwise explain it or assist in its implementation may be prepared, copied, published and distributed, in whole or in part, without restriction of any kind, provided that the above copyright notice and this paragraph are included on all such copies and derivative works. However, this document itself does not be modified in any way, such as by removing the copyright notice or references to OASIS, except as needed for the purpose of developing OASIS specifications, in which case the procedures for copyrights defined in the OASIS Intellectual Property Rights document must be followed, or as required to translate it into languages other than English.

The limited permissions granted above are perpetual and will not be revoked by OASIS or its successors or assigns.

This document and the information contained herein is provided on an “AS IS” basis and OASIS DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTY THAT THE USE OF THE INFORMATION HEREIN WILL NOT INFRINGE ANY RIGHTS OR ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
